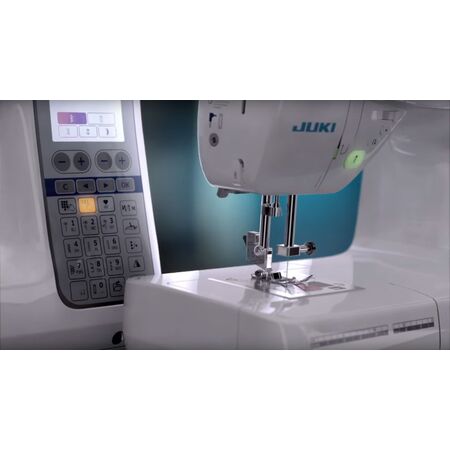

Juki HZL DX5

Sewing Machines that meet your needs to achieve perfection.

Enjoy the satisfaction of creating your own design while using high quality finishes. Get the most out of your sewing experience with the New JUKI HZL-DX series and turn your creations into masterpieces.

Join a variety of fabrics effortlessly and add trims with ease.

Add decorative stitches while using a variety of specialty threads.

Sew Decorative patterns in parallel to form new stitch designs.

Create a one-point floral stitch surrounded by decorative patterns.

Box Feed – Juki Industrial Sewing Machine Technology

The Juki industrial “BOX Feed” system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics.

Thick denim folded into three layers for a flat fell seam Evenly sews thick fabrics effortlessly. alt The BOX Feed system stays in contact with your fabrics longer for a consistent, reliable seam every time. alt Stitching thin fabrics No fabric shrinkage even sewing on light weight cotton.

Stitching towel fabrics Evenly feeds hard-to-sew high pile fabrics.

Straight Stitch Slide Plate

Simply slide the front lever to switch to a single needle hole! Sew the lightest fabrics with perfect needle permeation. The single needle plate will not allow fabrics to be pushed into the needle hole. Free motion stitch with precision and perfection. Sew with confidence, when the single needle hole plate is set, only the straight stitch patterns can be selected.

Needle hole for straight stitches alt Normal needle hole Float Function Prevents Uneven Seams

By pressing the float button, you can sew with the presser foot slightly raised. By raising the presser foot to float you can sew fabrics without pushing layers or creating uneven seams.

You can sew with the presser foot slightly floated.

The height of the presser foot can be set in increments of 0.1 mm, allowing delicate adjustment according to the materials. Using the float function *The standard presser foot is used in both cases. Not using the float function Pressure on layers create uneven seams.

Easily Create and Enjoy Beautiful Buttonholes with Juki’s Combination of Industrial Background and Modern Technology

Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole.

Buttonhole

The buttonhole sewing presser foot contains a clamping plate, so you can confidently feed fabrics by holding them between the clamping plate and the presser foot.

16 types of buttonholes are available for your needs

Cutting width adjustment of the buttonhole Now it is possible to adjust the cutting width in 3 steps.

Customize Your Machine with even more New Functions!

Easy-to-use Quick Select Buttons

• * Start/stop
• * Reverse stitch
• * Lock stitch
• * Thread trimming
• * Needle up/down
• * Presser foot auto lift

Foot Switch Function alt Allowing for greater versatility,

Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.

Presser Foot Pivot Function

When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing.ÂÂ *This function can also be switched off.

Setting of the Presser Foot Lifting After Thread Trimming

Because the presser foot is automatically lifted after automatic thread trimming, you can quickly remove fabrics. *This function can also be switched off.

Adjustable Starting / Reverse Stitch Speed

You can adjust the starting and reverse stitch speed between three steps of fast, normal, and slow.

Check the video reference for convenient assistance!

With the combination of assured automatic operation and fine manual control, you can enjoy ideal natural operation.

Foot Switch Function

Presser Foot Pivot Function

Hassle-Free Operation Click here!

Create and Design with Precision and Perfection

Lock Stitch

For the lock stitch at the start and the end of sewing, you can choose two kinds of “Reverse stitch” and “Lock stitch”. If you press the lock stitch button in the middle of sewing a pattern, the machine stops after sewing one cycle of the pattern.

 Low-Speed Inching Sewing

By pressing and holding the needle up/down button, you can sew slowly. Sew corners, stops and starts with precision.

Speedy Straight Sewing

With a maximum straight sewing speed of 1,050 stitches/min, you can sew fast.

Knee-Lifting Lever

Presser foot can be raised and lowered by the knee-lifting lever. Presser foot lift is up to 0.5″(12mm) when the lever is used. When the foot is raised to the maximum height, you can also switch it back from automatic operation (button) to manual operation (lever).

Quick Preparation Makes Sewing a Breeze

Automatic Needle Threader

Simply place the thread in the guide and lower the lever. Easily and quickly thread a needle with one hand.

Bobbin Winder with Independent Motor

To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread everytime, and also use a cutter after winding.

Quick Bobbin Preparation

The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bobbin thread.

Enjoy the Freedom to Create and Design with Ease and Satisfaction

Elongation Pattern

Change the overall length without changing the sewing density of the pattern.

Free Motion

Flip the switch and drop your feed dogs. Enjoy both straight stitch and specialized zig zag for free motion. Adjust the presser foot height for easy movement. Enjoy the Freedom of Free Motion.

Direct Stitch Pattern Selection

Often-used sewing patterns such as straight lines, overcast stitches, and zigzag patterns can be quickly selected via direct buttons. You can also adjust the sensitivity of the touch panel.

Large Sewing Space

Enjoy extra space and comfort by adding the accessory table while sewing or quilting.

One-Point Patterns

The decorative patterns can be sewn as one point patterns. It is also lovely to create an original tag by combining these patterns with the character stitches.

Character Stitch

The machine includes three alphabetic/numeric fonts. Up to ten often-used patterns such as names and initials can be saved in the memory.

Corner Sewing of Applique

The stitch width of the needle can be set to automatically and gradually change to achieve a stitch that gives a beautiful finish even to the corner of an applique or the start /end of a line of sewing. By adjusting the width and length, you can also control the angles of your design.

Lace Like Patterns

Sewing several patterns in parallel creates lovely lace-like stitches. You can enjoy the combination of patterns that give the image of dedicated lace braid.
